Autoclaves

MELAG ProLine 123 – Class S 23L Autoclave

Name: MELAG ProLine 123 , Class S 23L Autoclave - Sychem Direct
SKU: ME10123S
Availability: InStock
Rating: 5.00 (4 reviews)

(4)

The Melag Pro Line Class S 23L Autoclave is a stand-alone steam steriliser that offers you enough space for the safe sterilisation of up to 4 kg of instruments on 5 trays. Offering high performance while cutting costs when sterilising your products. Available either as individual products or as a Full Bundle.

Bundle

Device Only (no internal racks)

Full Bundle inc. Racks

Clear

Request Quote

SKU: ME10123S, ME10123S

Prices are excl. VAT

Payment options available with

High loading capacity with 23L chamber

Class S Vacuum Procedure

Connectivity and Data Logging

Installation & Service Options

Servicing & Validation

From £299.00

Learn More

Installation

£299.00

Learn More

Product Overview

The Class S 23L Autoclave Melag Pro Line is a stand-alone steam steriliser that offers you enough space for the safe sterilisation of up to 4 kg of instruments on 5 trays. Delivering more performance with 35% shorter cycle times and 15% increased loading, the steam steriliser boosts performance while lowering costs, with 50% maintenance work and 96% lower water consumption.

The Full Bundle includes the Vacuclave 123 S, Mount A Plus (long) and the Tray (20 x 19 cm). These products can also be purchased individually.

Downloads

User Manual

Download

Class S 23L Brochure

Download

Specifications

What's In The Box

FAQs

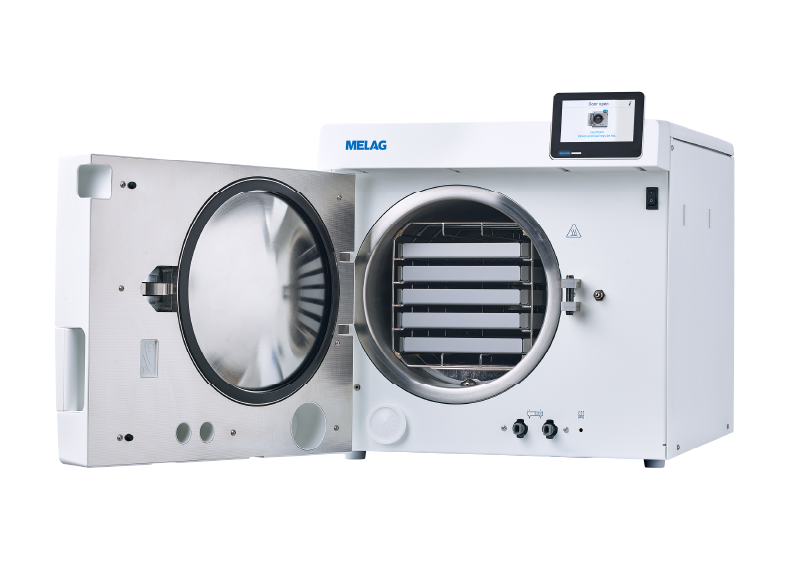

https://shop.sychem.co.uk/app/uploads/2025/04/pro-line-class-s-800x577-1.webp

High Loading Capacities

Sterilisation of up to 5 kg on 5 trays in only 13 to 25 minutes

Intuitive Operating Concept

Due to the Smart-Touch Display with LED status

Stand-Alone Device Concept

With integrated water tanks for maximum flexibility

Class S vacuum procedure

Reliable sterilisation of simple hollow body instruments

Programs

Universal S

20 – 25 min

Quick S

16 – 20 min

Gentle S

36 – 38 min

Prion S

35 – 40 min

Dimensions

Width x Height x Depth (cm)

External

47 x 50 x 64

Chamber

ø 25 x 45

Electrical & Technical Requirements

Power Supply

220 – 230 V / 50 – 60 Hz

Load Quantity

max. 5 kg instruments / 1 kg textiles

Weight

47 kg

Water

Distilled, Deionised or RO water

*Please note Melag Autoclaves cannot run on tap water. Any water with a higher conductivity of 60 ms (Micro siemens) will not work in the unit.

What's In The Box

With the Autoclave, you will recieve:

DRYtelligence®

Smart-Touch Display with LED status

EasyCare routine concept

80% shorter drying times

Touchscreen with intuitive user interface for simple operation

User friendly operation for efficient filter replacement, tank cleaning and water supply

Connectivity and Data Logging

Compliance with legal requirements by saving the sterilisation parameters via USB or network or log printout via MELAprint 80. MELAprint 80 can be deployed to print barcode labels for marking and complete traceability of instruments.

Energy Saving Mode Power Save

Heater and display go into standby mode between sterilizations for top energy efficiency.

What Our Clients Can Expect

Interest-Free Installments

Split your payments - no extra cost!

Secure Transactions

Shop with confidence knowing you're safe.

Technical Support

Expert help whenever you need it.

Reviews

(4)

Excellent value and top-tier customer service.

Submitted by: Terri Cook

Well-built and clearly designed with professionals in mind.

Submitted by: Patrick Abbott

Exactly what we needed for our operations.

Submitted by: Kenneth Williams

Fantastic product, very happy with the quality

Submitted by: Adrian Jones

Load more reviews

Live Chat

Send us a message on our live chat, online during office hours.

Chat with us

Call Us

Give us a call today to speak to an expert.

0845 644 6824

Contact Form

Let us know what you need and we’ll respond as soon as possible.

Go to form

Certified & Awarded

Frequently Asked Questions

Do you offer Installation for Benchtop Autoclaves?

Yes, ensure safe and compliant set up of your new Autoclave with Sychem Direct’s expert installation service.

*Only available when purchasing a benchtop autoclave through Sychem Direct.

What type of water is required for operation?

Distilled, deionised, or RO water must be used. Tap water or water with conductivity above 60 µS (micro siemens) will not work.

What sterilisation programs are available?

Universal S: 20 – 25 min
Quick S: 16 – 20 min
Gentle S: 36 – 38 min
Prion S: 35 – 40 min

What data logging and connectivity options are available?

Sterilisation parameters can be saved via USB, network, or log printout via MELAprint 80
MELAprint 80 can also print barcode labels for traceability
